Precision Optometry Optical Patterns

Opto-Line crafts reticles, ellipses, metrology targets, and many other custom patterns which serve dozens of Universities, Visual Science Centers, Eye Institutes, Ophthalmology Schools, etc.

alt tagoptometry opthalmology opto line lens patterns printing
alt tagCase Study Split detection masks Opto Line

Case Study

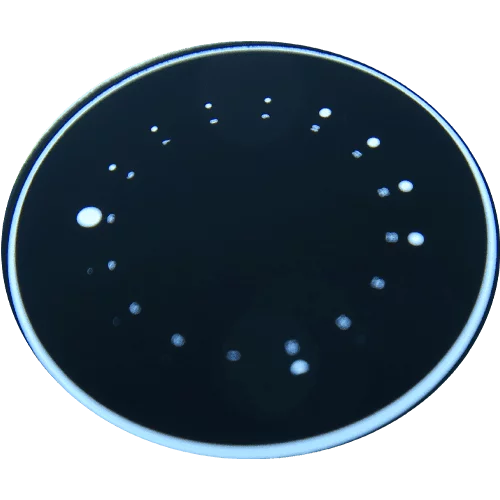

Split-detection masks for 60° deflection towards confocal detector

  • Annular masks on a circular Ø1″ glass substrate with a high reflecting aluminum coating on one surface and an anti-reflection coating on the other surface.
  • All ellipse masks are centered on a 16 mm diameter circle, 22.5° apart and when the masks are elliptical, their major axis is oriented radially.

For this particular custom pattern:

  • Smallest ellipse: 12.5um minor axis, 13.8um rnajor axis
  • Largest ellipse: 500um minor axis, 551.7um rnajor axis
