Precision Lens Patterns
Lens Patterning
Opto-Line has refined its processes over the years to provide patterns on curved substrates (lenses). Concave and Convex substrate patterning requires special, proprietary techniques combined with meticulous care and experience. Opto-Line will strive to perfect your patterned lens projects.
Our photolithography techniques are done with the utmost care and precision. Our team has over 100 years of total experience resulting in a tried and true methodology for delineating your patterns.
Lens patterning requires advanced skills and processing methods; a service that few can provide. Opto-Line can deliver photoresist patterns on lenses or a full thin film coating patterns. The feature sizes that Opto-Line can handle will strongly depend on the radius of the substrate. Feasibility of each project is reviewed by our team.
Custom patterned lenses are often used in the aerospace and defense industries. Opto-Line International is proud to have partnered with many of our United States programs to provide them with the highest quality components.
EMI pattern on a fused silica concave/convex lens using a precise honeycomb pattern grid in deposited gold

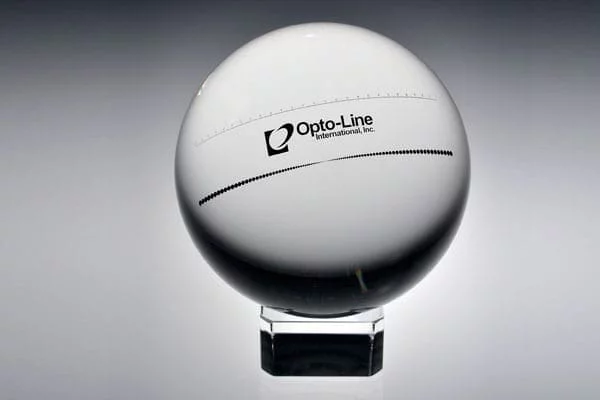

Demonstrating Opto-Line’s capabilities, we created this chrome pattern on a Ø3” glass sphere
EMI pattern on a fused silica concave/convex lens using a precise honeycomb pattern grid in deposited gold
We'd love to hear from you. Please tell us more about your custom optical pattern needs.
