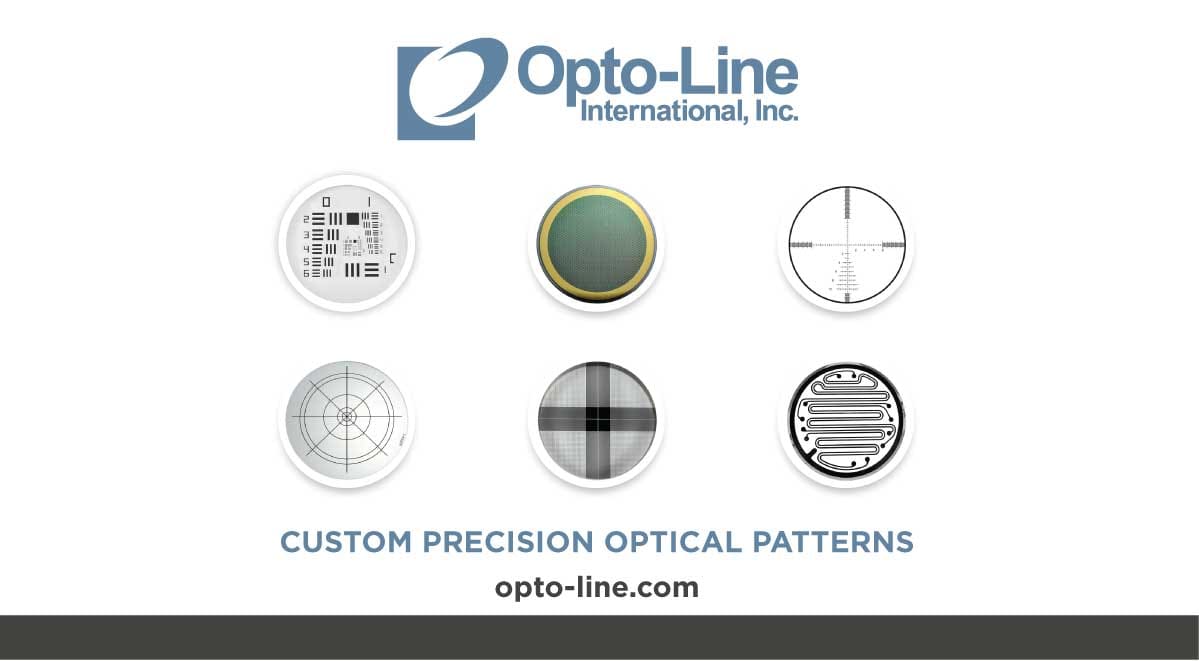

Custom Patterns

Opto-Line International’s products and services include multi-density resolution masks, neutral density filters, reticle patterns, precision apertures, calibration test targets, EMI grids, photolithographic services, contrast test targets, and many more.

Our Resolution Test Targets Meet all MIL Standards Still widely used as an accepted method to test the resolution of optical imaging systems including microscopes, cameras and image scanners, resolution test targets are a specialty of Opto-Line. For more information about how we can help meet your test target needs, we invite you to call […]

Specializing in custom precision optical patterns for all areas of research and development, Opto-Line helps clients reach their R&D goals. Our custom patterns are often vital components in the R&D phase of a product. We have a long history of partnering with companies across an array of industries to help them achieve their product goals. […]

Opto-Line patterns on a myriad of substrates including all glass material and other IR materials including geranium, silicon, zinc sulfide, quartz, and sapphire. The largest substrate size that Opto-Line can pattern is approximately 12.5” diagonal. The smallest part that can be manufactured is about 1mm x 1mm.

Opto-Line International Creating Custom Precision Patterns on Optics Since 1967 Opto-Line is not your standard, stock reticle company. We manufactures your unique, custom patterns on optical substrates per your requirements. From reticles and apertures to multi-density resolution masks and almost any pattern imaginable, our photolithography and thin film coatings practices are optimized to create your […]

Opto-Line uses the following methods for our customer’s custom Multi-Density Resolution Masks: Half Tone: By using very small dots and changing the amount of the dots, we can create varying densities that typically fulfill our customers’ needs. Continuous: Discrete, individual depositions of Inconel are used to create each density. In this case, Opto-Line requires separate […]

Reticles are a common type of pattern we handle, but they are just the beginning. Beam Splitters, slit apertures, 1951 resolution test targets, and everything in between can be made to our customers’ specifications. We’d love to hear from you. Please tell us more about your custom optical pattern needs.

Opto-Line International has been creating custom precision patterns on optics since 1967 We are not your standard, stock reticle company. Instead, Opto-Line manufactures your unique, custom patterns on optical substrates per your requirements. From reticles and apertures to multi-density resolution masks and almost any pattern imaginable, our photolithography and thin film coatings practices are optimized […]

Many of our aerospace reticles are used in sun angle sensor systems on satellites. Our durable black chrome has a Rave <5% over the visible spectrum and has been a tried-and-true coating for decades. Opto-Line has provided various custom patterns typically utilizing our low-reflecting black chrome. We invite you to reach out today to learn […]

Whether it be silicon wafers that need custom resist patterns, a 7” plate, or a Ø10mm concave optic, Opto-Line’s ability to provide photoresist patterns on a multitude of optics is just one factor that makes us stand out. We have many customers that want to utilize their own coatings but do not have the ability […]
