Custom Patterns

Some examples of our custom patterning capabilities include reticles, resolution test targets, EMI grids, apertures, linear scales, and neutral density step tablets. Opto-Line can typically tackle any custom pattern imaginable. We take great pride in the exceptional quality of our work and invite you to reach out today to learn more about how we can […]

Opto-Line produces the finest optical patterns to meet your custom or standard Test Target needs, meeting all MIL standards. It is still widely accepted to test the resolution of optical imaging systems such as microscopes, cameras and image scanners. For the 1951 USAF, the common format consists of six “groups” in three layers of patterns. […]

Using our proprietary method of fabricating the entire part, the centricity and accuracy are of utmost importance to our customers and we take pride in exceeding these requirements. Opto-Line works with Universities, Visual Science Centers, Eye Institutes, Ophthalmology Schools, and more. Reach out today for more information or to set up a consultation.

Since 1967, Opto-Line International has built a reputation for excellence in crafting the the highest quality custom precision optical patterns and thin film coatings available. Pattern Capabilities Using our customers’ specifications, drawings, CAD files, or simply their ideas, Opto-Line can replicate almost any custom pattern on various optics. Opto-Line’s minimum feature size is approximately 1μm […]

Combined with our specialized photolithography, Opto-Line utilizes thin film coatings to make your custom patterns. Some examples of our custom patterning capabilities include reticles, resolution test targets, EMI grids, apertures, linear scales, and neutral density step tablets. Opto-Line can typically tackle any custom pattern imaginable.

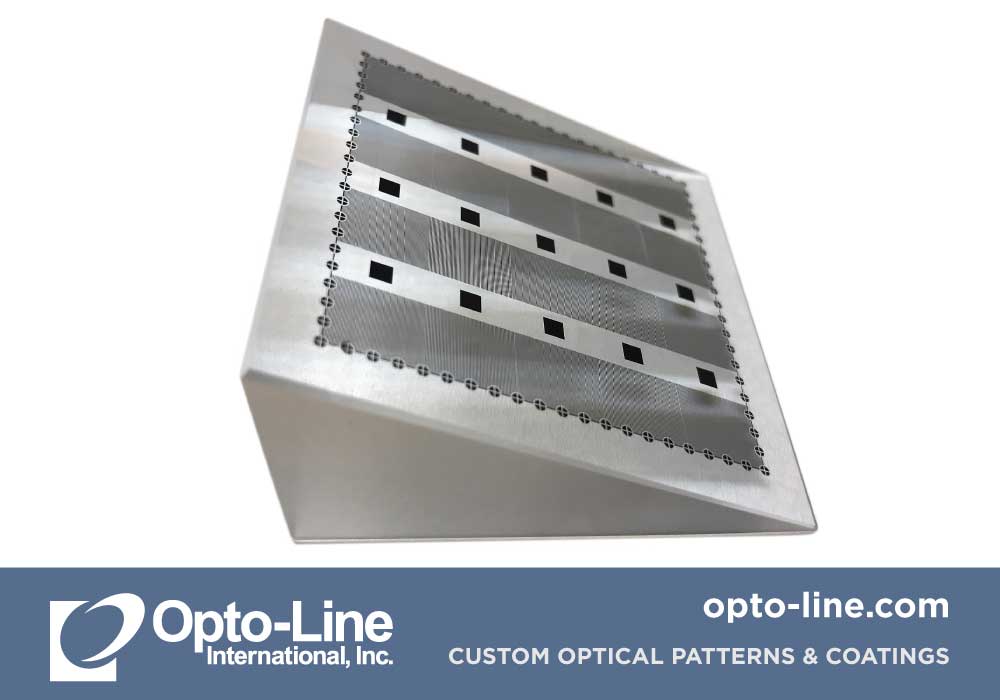

With precision, accuracy, and perfection, Opto-Line utilized its proprietary low-reflecting black chrome to create a very detailed image on these prisms used to validate the resolution of optical systems. Image reprinted with client permission

Opto-Line is synonymous with customization. We are proud to deliver some of the most difficult custom optical pattern designs that that require a very high degree of precision, experience and ingenuity. From Defense to Research and Development, Opto-Line serves hundreds of world-wide markets for their custom optical patterns and coatings needs.

We assist the Military and Defense industries by supplying precision Custom Patterned Optics, Range Finder Reticles, and EMI Grids  for the development of scopes, laser range finders, target designator systems and other critical applications. Opto-Line is proud to manufacture parts used for the United States’ defensive systems as we take great pride in our work […]

Our multi-density resolution masks can be fabricated by either half tone or continuous methods as described below. Half Tone: By using very small dots and changing the amount of the dots, we can create varying densities that typically fulfill our customers’ needs. Continuous: Discrete, individual depositions of Inconel are used to create each density. In […]

From 1951 USAF targets to many custom reticles and resolution targets, Opto-Line’s Metrology services provide precision components for calibration, measurements and alignments.
